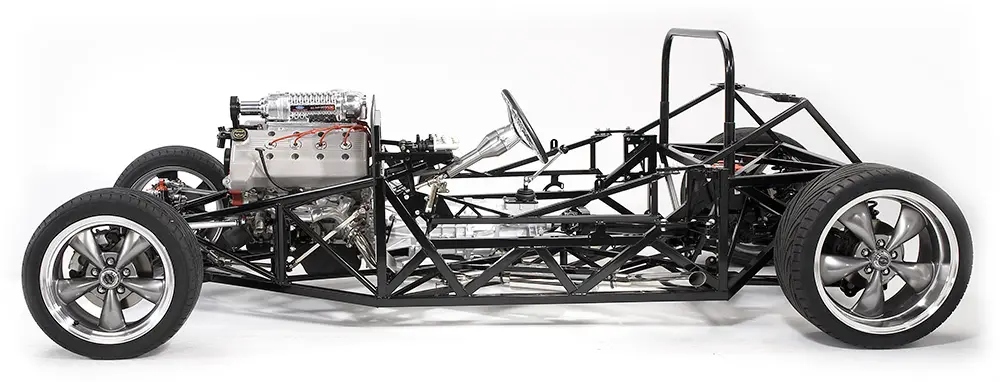

’33 Hot Rod - What You Get – Stage 1 Package $9,990

Most people purchase our complete ’33 Hot Rod package which costs $19,990. We also sell the car in two stages (that cost $9,990 each). Stage 1 includes the chassis and suspension parts. Stage 2 gives you the body, interior, and trim you need to finish your car.

Here’s what comes with the Stage 1 Hot Rod package:

Frame:
Complete jig-welded tube frame. Includes all mounts ready to accept small block Ford and 4.6L engines.
• Includes full width roll bar
• Mounts either 3 or 4 link suspension

Chassis Aluminum Panels:
Includes 26 CNC cut, pre-formed 6061-T6 aluminum panels for cockpit, trunk, and engine bay.
• 1200 pre-packaged rivets1/8” short & long, 3/16” short & long
• Complete cockpit aluminum
• 1/8″ firewall between engine and passenger compartment

Complete Front Suspension:
Unequal length a-arm control arms with in-board coil-over shock suspension. Comes complete with parts and fasteners.
• Koni brand high performance mono-tube, rod-end shock absorbers
• Coil-over kit for Koni dampers including spring hat, threaded seat and black powdercoated performance springs
• Adjustable lower control arms with ball joints and fasteners
• Upper tubular control arms with ball joints and fasteners
• Grade-8 mounting hardware.

Rear Suspension:
• 4-Link Suspension
• Koni brand high performance mono-tube, rod-end shock absorbers
• Coil-over kit for Koni dampers including spring hat, threaded seat and black powdercoated performance springs
• Factory Five tubular upper and rear lower control arms, w/polyurethane bushings and fasteners

Complete Front Brake Kit:
• Custom spindles w/fasteners
• Front hubs, fasteners and dust covers
• Front brakes, Ford GT 11” front rotors w/twin piston calipers, brake pads and fasteners
• Master cylinder (listed in pedal box assembly), stainless braided brake line, front and rear w/mount clips, banjo bolts and brake line mounting fasteners
• Pre-flared 3/16” brake line and brake line T-adapter
• Emergency brake handle, fasteners and cable

Complete Steering System:
Complete steering system using rear steer manual rack from tie rod ends and fasteners to steering wheel and badges.
• Manual steering rack w/inner and outer tie rod ends and fasteners
• Polyurethane steering rack bushing and fasteners
• Nickel plated lower steering shaft
• 14” banjo steering wheel w/boss and ceramic F5R center section and fasteners
• Steering system, including flange bearings and fasteners
• Custom Ididit steering column with frame mounts

Complete Fuel System/Parts:
This assembly provides everything from the gas cap to the lines, and is designed to work with carburetors or fuel injection systems. External fuel pump required.
• Fuel tank w/mounting hardware, vent, gaskets, pick-up and fuel level sending unit
• Fuel filler neck and fasteners
• Pre-flared fuel lines (1/4” and 5/16”) w/unions, barbs, hose clamps and high press flex lines and fasteners
• Aircraft style brushed aluminum fuel cap with gaskets, ground strap, fuel hose to tank w/fasteners.
• 3/8” line fuel filter, connectors and hose clamps

Complete Cooling System/Parts:
Electric cooling fan and mounting hardware, radiator hoses, and all necessary fasteners.
• Electric cooling fan and mounting kit w/connectors
• Aluminum radiator w/cap and in-line filler neck
• Built in transmission cooler in radiator
• Stainless Steel radiator hose kit incl. adapter kit, fasteners and hose
• Overflow tank w/cap, hoses, hose clamps and mounting hardware
• 185 degree thermostat switch and wiring

Engine Accessories:
The ’33 Hot Rod kit is configured to accommodate the engine of your choice.
• Engine/Transmission mounts (select 302/351 or 4.6L), with fasteners
• Exhaust, with gaskets and fasteners.

Driveshaft:
Select from one of three available driveshafts w/fasteners to match the engine/trans of your choice. Select one of the following:
• 28 spline driveshaft for T-5, AOD, or Tremec 3550s
• 31 spline driveshaft for Tremec TKO 500 or 600s
• 31 spline driveshaft for 4.6L engines w/T-45s or 3650s

Complete Pedal Box and Components:
The ’33 Hot Rod kit utilizes the proven Wilwood brand pedal box w/fasteners and all the required ancillary parts.
• Wilwood pedal box and mounting hardware
• Master cylinders
• Accelerator pedal, accelerator cable, return spring and ball stud retainer, w/fasteners
• Brake line adapters and T-fittings

Assembly Manual:
Bound assembly manual that is full of pictures and diagrams.

Fasteners:
Over 1600 top quality zinc plated, chrome and stainless steel USS and SAE fasteners, numbered and packed individually by assembly.
